ELECTRO-SEIS Long Stroke Exciter
Ball Bearing

ELECTRO-SEIS®

The ELECTRO-SEIS® is a force generator specifically designed to be used alone or in arrays for studying dynamic response characteristics of structures such as automobiles, aircraft, bridges, floors, missiles, piping systems, spacecraft, towers, etc.

TYPICAL APPLICATIONS

  • Modal Testing - Excitation source used for the determination of a structure's damped natural frequencies, damping factors and mode shapes.
  • Compliance & Fragility Testing - Used in dynamics laboratories to determine compliance with various commercial and military specifications.
  • Seismic Testing - Low frequency excitation source to assess survivability and performance during simulated seismic events.
  • Transducer Calibration - Used both in laboratory and field environments for the amplitude and frequency calibration of vibration sensors.
  • Structural Transmission Testing - Field and laboratory excitation source used for the determination of structureborne noise paths, transmissibility's and stress. distributions
133 N (30 lbf.) Long Stroke Shaker with linear bearings


The APS 113 ELECTRO-SEIS® is a force generator specifically designed to be used alone or in arrays for studying dynamic response characteristics of various structures or for vibration testing of components and assemblies.

Main Features

  • Long stroke 158 mm (6.25 inch) peak-peak
  • Max. force 133 N (30 lbf) or 186 N (42 lbf)
  • Frequency Range DC ... 200 Hz
  • One-man portable, weight < 36.0 kg (80 lb)

Accessories (Optional)

  • Reaction Mass for use in vertical or horizontal free armature mode with rated force down to 2 Hz
  • Auxiliary Tables - Horizontal and Vertical - for component testing
  • Power Amplifier APS 125
  • Zero Position Control APS 0109
445 N (100 lbf) Long Stroke Shaker with linear bearings


The APS 400 ELECTRO-SEIS® is a force generator specifically designed to be used alone or in arrays for studying dynamic response characteristics of various structures or for vibration testing of components and assemblies.

Main Features

  • Long stroke 158 mm (6.25 inch) peak-peak
  • Max. force 445 N (100 lbf)
  • Two-man portable, weight < 73.0 kg (161 lb)

Accessories

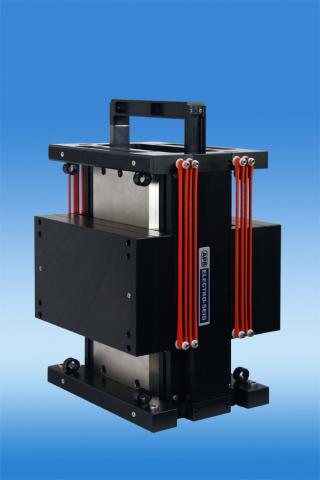

  • Reaction Mass for use in vertical free armature mode with rated force down to 2 Hz
  • Auxiliary Tables - Horizontal and Vertical - for component testing
  • Power Amplifier APS 145
  • Zero Position Control APS 0109
