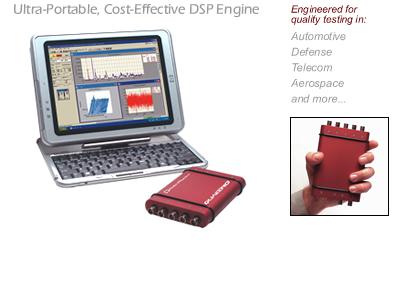

DP - Quattro Analyzer

4 input channels
2 source outputs channels
1 High Speed Tachometer
120 dB dynamic range (24 bit ADC on all channels)
40 kHz realtime bandwidth (94 kHz optional)
USB 2.0 Connection to Host PC
Completely bus powered
Frequency Range DC to 93 kHz (204.8 kHz sample rate)
32 bit floating-point DSPs delivering up to 204.8 kHz sample rate on all channels simultaneousl
High Resolution up to 25,600 lines
SIMO, MIMO capabilities
