Air Bearing Horizontal Shakers
The APS Dynamics series of air bearing long stroke vibration exciters provide excellent properties for low frequency excitation of accelerometers and other low frequency instruments and sensors. Some models have a horizontal air bearing table coupled to the driver unit that allows high payloads up to 23 kg e.g. for the calibration of geophones.

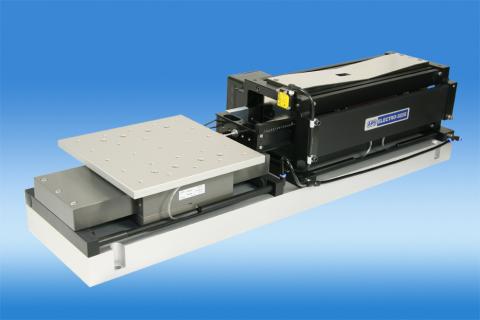

APS 129 Vibration Exciter
133 N (30 lbf) Long Stroke Shaker with air bearings and payload table
The APS 129 ELECTRO-SEIS® Long Stroke Shaker is a force generator specifically designed to be used for calibration and evaluation of accelerometers and other motion transducers. It provides excellent properties for low frequency excitation of such devices. This model has a horizontal air bearing table coupled to the driver unit that allows high payloads up to 23 kg e.g. for the calibration of geophones and heavy seismic sensors.
Main Features
- Long stroke 158 mm (6.25 inch) peak-peak
- Max. force 133 N (30 lbf) or 186 N (42 lbf)
- Frequency Range DC ... 200 Hz
- Air bearings for excellent signal quality
- Large air bearing table for payload loads up to 23 kg
Accessories (Optional)
- Vertical mounting kit
- Power amplifier APS 125
- Zero-Position-Controller APS 0109
APS 129 Vibration Exciter
95 N (21 lbf) Long Stroke Shaker with air bearings and payload table
The APS 500 ELECTRO-SEIS® Long Stroke Shaker is a force generator specifically designed to be used for calibration and evaluation of accelerometers and other motion transducers. It provides excellent properties for low frequency excitation of such devices. This model has a horizontal air bearing table coupled to the driver unit that allows payloads up to 3 kg.
Main Features
- Long stroke 158 mm (6.25 inch) peak-peak
- Max. force 95 N (21 lbf)
- Frequency Range DC ... 200 Hz
- Air bearings for excellent signal quality
- Large air bearing table for payload loads up to 3 kg
Accessories
- Vertical mounting kit
- Power amplifier APS 125
- Zero-Position-Controller APS 0109
APS 129 Vibration Exciter
200 N (45 lbf) Very Long Stroke Shaker with air bearing load mounting table
The APS 600 ELECTRO-SEIS® is a very long strong force generator specifically designed to be used for the calibration of geophones and heavy seismic sensors.
Main Features
- Long stroke 450 mm (17.7 inch) peak-peak
- Max. force 200 N (45 lbf)
Accessories (Optional)
- Power amplifier APS 145
- Zero-Position-Controller APS 0109
- System Cable for Connection Shaker to Amplifier
